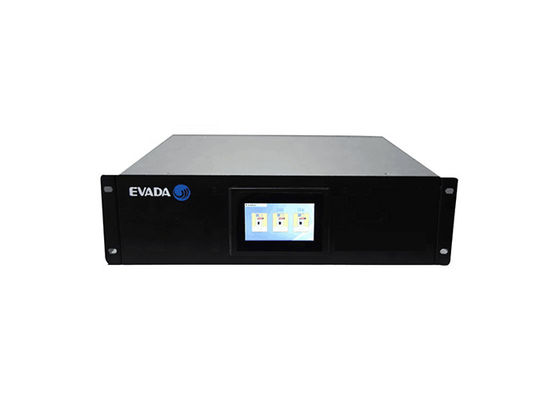

Evada UPS Power Supply Self - Service Bank Intelligent Time - Sharing Power Hierarchic Management System

Evada UPS Power Supply Self - Service Bank Intelligent Time - Sharing Power Hierarchic Management System

  • Evada UPS Power Supply Self - Service Bank  Intelligent Time - Sharing Power  Hierarchic Management System
  • Evada UPS Power Supply Self - Service Bank  Intelligent Time - Sharing Power  Hierarchic Management System
  • Evada UPS Power Supply Self - Service Bank  Intelligent Time - Sharing Power  Hierarchic Management System
  • Evada UPS Power Supply Self - Service Bank  Intelligent Time - Sharing Power  Hierarchic Management System
Evada UPS Power Supply Self - Service Bank  Intelligent Time - Sharing Power  Hierarchic Management System
Product Details:
Place of Origin: Fujian
Brand Name: EVADA
Certification: ISO9001
Model Number: Time sharing system
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$900-2000/pc
Packaging Details: carton box+foam
Delivery Time: 3-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month
Contact Now
Detailed Product Description
Brand Name: EVADA Output Voltage: 360/380/400/415VAC
Application: UPS, Computer Related Voltage: Lightning
Type: Online Voltage Accuracy: ± 1%
Output Voltage: 360/380/400/415VAC (3P+N) Weight: 5-6kgs
High Light:

uninterruptible power supply

,

high frequency ups

Evada UPS Self-service bank smart intelligent time-sharing power intelligent hierarchic management system



Function Description:


No. Function Description Product index
1 Mains City power detection The mains power is cut off, the time sharing function is activated, the mains power is cut off, and the time sharing function is turned off.
2 Split output Four-way time-sharing output
3 Voltage detection Diversion voltage detection and display
4 Current detection Diversion current detection and display
5 Time setting The Deversion time can be stored and displayed at any setting from 0-9999min.
6 Working status Main power, diversion switch, voltage, current, time
7 Manual switch The switching action of the shunt can be manually controlled through the touch panel



Parameters:



Project Input characteristics Output characteristics Split one Split Two Split Three Split Four
Voltage AC220V AC220V AC220V AC220V AC220V AC220V
Current 64A 64A 16A 16A 16A 16A
Time setting Do not start Power outage activated. 0-9999 0-9999 0-9999 0-9999

min min min min

Pre-sales notice:



The solution is mainly used to solve the self-service bank's split-time control of the network and monitoring equipment to ensure the backup power supply time of the important load. When the equipment is powered by the UPS power supply, when the utility power is abnormally powered off, the equipment will use the UPS battery. Inverter power supply, intelligent time-sharing control system detects the mains power outage, the system will turn off the power of the corresponding equipment one by one according to the set time; when the mains supply returns to normal, the intelligent time-sharing control system detects the mains recovery, system recovery All devices corresponding to the output unit are powered.



The intelligent time-sharing control system completes the power-off and power-on functions of the device in sequence according to the preset time. It satisfies the requirements for power-off use of ordered and customized devices in the user equipment environment, effectively protects the normal operation of important equipment, and reduces battery input and maintenance, thereby achieving normal business development.





Enterprise Qualification Honor

  1. ISO18000
  2. ISO14001
  3. ISO9001
  4. Fujian Famous Trademark
  5. High-tech Enterprise Certificate
  6. Top 10 China UPS Supplier
  7. Certificate of Enterprise Credit Grade: 3A
  8. Governing Member Certificate of China Power Supply Society
  9. Audited Supplier by SGS
  10. Excellent Taxpayer
  11. The most influential brand in China Communication Market
  12. 2010 China Industry Informatization Trusted Brand Award
  13. 2010 Excellent Bid-winning Enterprise in National Bidding Procurement
